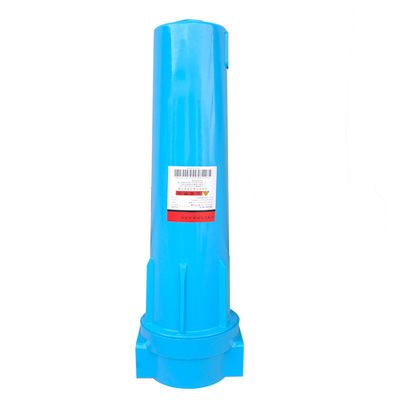

Oil Removing Precision Filter
Description
Filter element classification
AO grade primary filter
Used to remove particles above 1μm, and can condense liquid oil and water. At 21℃, the oil mist content does not exceed 0.5mg/m (PPM)
AA grade fine filter
Used to remove dust particles larger than 0.01μm including oil and water. Under 21C conditions, the oil mist content does not exceed 0.01mg/m3 (PPM) (requires pre-AO level)
AX level high efficiency filter
Used to remove particles larger than 0.01μm including oil and water. Under 21C conditions, the oil mist content does not exceed 0.001mg/m (PPM) (requires pre-AO level)
AR grade universal dust filter
Used to remove dust particles above 1μm (after placing in the suction dryer)
ACS grade activated carbon filter
Used to remove oil vapor and hydrocarbon odors,
Under 21C conditions, the oil mist content does not exceed 0.003mg/m (PPM) (excluding methane, requiring a pre-AO level)
AAR grade high efficiency dust removal filter
Used to remove dust particles above 0.01μm. (Place it after the vacuum dryer)
Working conditions and technical indicators
Maximum working pressure :<1.6MPa
Recommended maximum operating temperature :<66 ° C
Recommended minimum operating temperature :<1.5 ° C
| Oil removing precision filter technical parameters | |||||||
| MODEL | Air pipe diameter | Air handling capacity(m³/min) | Dimensions(mm) A H H1 |
Weight(kg) | Filter element/quantity | ||
| Threaded interface | |||||||
| BF0005(G) | DN20(G¾") | 0.8 | 100 | 270 | 26 | 1.1 | BE0005 |
| BFO010(G) | DN20(G3¾*) | 1.8 | 100 | 270 | 26 | 1.4 | BE0010 |
| BF0020(G) | DN25(G1") | 2.8 | 100 | 270 | 26 | 1.5 | BE0020 |
| BF0030(G) | DN25(G1") | 3.8 | 115 | 340 | 40 | 2.6 | BE0030 |
| BF0040(G) | DN40(G1½*) | 5.5 | 115 | 380 | 40 | 3.3 | BE0040 |
| BF0060(G) | DN40(G1½*) | 6.8 | 115 | 380 | 40 | 3.5 | BE0060 |
| BF0080(G) | DN50(G2*) | 8.8 | 135 | 690 | 50 | 4.5 | BE0080 |
| BF0100(G) | DN50(G2") | 11.5 | 135 | 690 | 50 | 4.8 | BE0100 |
| BF0120(G) | DN65(G2½*) | 14 | 160 | 870 | 65 | 10 | BE0120 |
| BF0150(G) | DN65(G2½*) | 19 | 160 | 870 | 65 | 12 | BE0150 |
| BF0250(G) | DN80(G3) | 28.5 | 220 | 790 | 184 | 17 | BE0250 |
| Flange interface | |||||||
| BF0300(F) | DN80(F3) | 35 | 400 | 1036 | 170 | 48 | BE0300 |
| BF0400(F) | DN100(F4) | 45 | 459 | 1076 | 170 | 51 | BE0400 |
| BF0500(F) | DN100(F4) | 55 | 565 | 860 | 670 | 68 | BE0250X2 |
| BF0600(F) | DN125(F5) | 65 | 565 | 1150 | 965 | 120 | BE0300X2 |
| BF0800(F) | DN150(F6) | 85 | 570 | 960 | 817 | 130 | BE0400X2 |
| BF1000(F) | DN150(F6) | 105 | 570 | 1250 | 993 | BE0300X3 | |
| BF1200(F) | DN200(F8) | 120 | 670 | 1010 | 820 | BE0400X3 | |
| BF1400(F) | DN200(F8) | 140 | 670 | 1045 | 895 | BE0300X4 | |
| BF1600(F) | DN200(F8) | 160 | 670 | 1226 | 1036 | BE0400X4 | |
| BF2000(F) | DN250(F10) | 200 | 800 | 1366 | 1128 | BE0400X5 | |
| BF2500(F) | DN250(F10) | 250 | 800 | 1420 | 1178 | BE0400X6 | |
| BF3000(F) | DN300(F12) | 300 | 950 | 1268 | 996 | BE0400X7 | |
| BF3600(F) | DN300(F12) | 360 | 950 | 1500 | 1220 | BE0400X8 | |
| Correction coefficients under other pressures are shown below : | |||||||||||
| Working pressure | 1 | 2 | 3 | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 20 |
| Pressure coefficient | 0.38 | 0.53 | 0.65 | 0.85 | 1 | 1.13 | 1.25 | 1.36 | 1.46 | 1.56 | 1.7 |
