Product Details:
Brand Name: Hongjinli

Psa Hydrogen Purification Production Unit

Name: Box PSA Nitrogen Generator Nitrogen Capacity: 1 ~100Nm3/h
Nitrogen Purity: 95%-99.999% Nitrogen Pressure: 0.5-0.8Mpa(boost For High Pressure)
Nitrogen Dew Point: ≤-40℃(Atmosphere Pressure) Control Power Supply: 0.2kw 220v 50Hz
High Light:

psa hydrogen purification


psa hydrogen production


psa hydrogen unit

PSA Nitrogen Generator



PSA (Pressure Swing Adsorption) technology is a widely used method in nitrogen gas generation systems, including PSA Nitrogen Generators. This advanced technology allows for the production of high-purity nitrogen gas from ambient air.

The PSA Nitrogen Generator operates on the principle of selective adsorption. It utilizes a bed of specialized adsorbent material, typically a carbon molecular sieve (CMS), which has a high affinity for oxygen molecules.

The process begins with the intake of compressed air, which is then passed through a series of filters to remove any impurities or contaminants. The filtered air is then directed into a vessel containing the CMS material. At this stage, the adsorption process occurs.

Under pressure, the CMS material preferentially adsorbs oxygen molecules, allowing nitrogen molecules to pass through relatively unaffected. This separation is achieved by exploiting the different adsorption characteristics of oxygen and nitrogen on the CMS material. As a result, a stream of nitrogen gas with a significantly higher purity is produced.

The adsorption process continues until the CMS bed becomes saturated with oxygen, at which point the vessel is depressurized. This is the swing stage of the PSA process. By reducing the pressure, the adsorbed oxygen molecules are released from the CMS material, allowing it to regenerate and prepare for the next cycle.

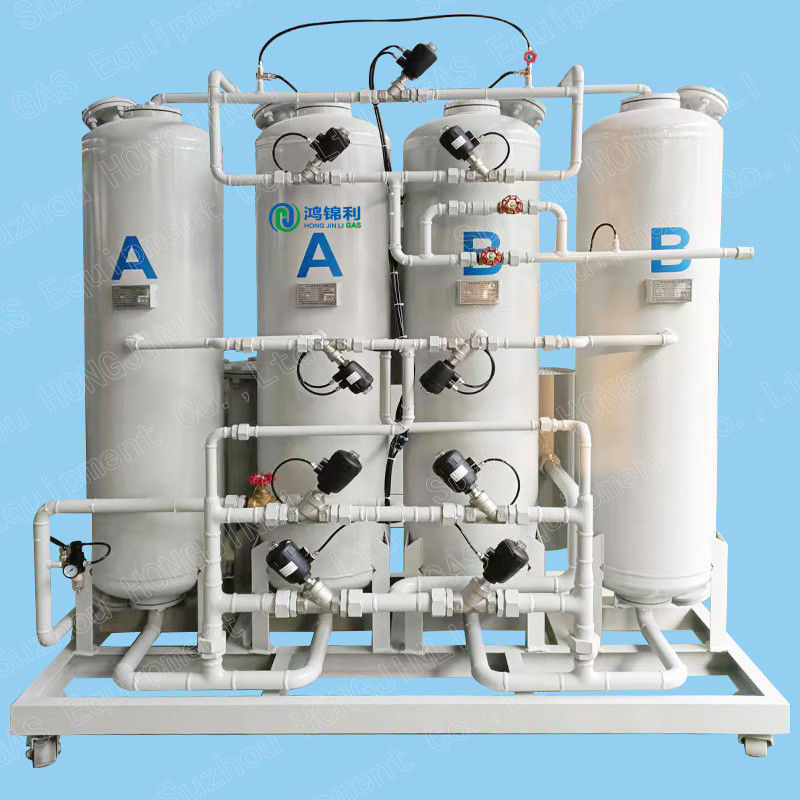

To ensure a continuous nitrogen gas supply, PSA Nitrogen Generators typically operate with multiple vessels or adsorption beds. While one bed is in the adsorption phase, providing nitrogen gas, the other bed goes through regeneration. This alternating cycle ensures a constant supply of high-purity nitrogen gas.

Overall, the PSA Nitrogen Generator's Pressure Swing Adsorption technology enables the efficient and cost-effective production of nitrogen gas by selectively adsorbing oxygen from compressed air. It is widely used in various industries, including food and beverage, pharmaceuticals, electronics, and chemical manufacturing, where a reliable and on-demand supply of pure nitrogen gas is required.




PSA Nitrogen Generators have a wide range of applications across various industries due to their ability to produce high-purity nitrogen gas on-site. Here are some common applications of PSA Nitrogen Generators:

Food and Beverage Industry: PSA Nitrogen Generators are extensively used for food and beverage packaging, preservation, and storage. Nitrogen gas is employed to displace oxygen, preventing spoilage, oxidation, and maintaining the freshness of packaged products, such as snacks, coffee, wine, and beer.

Pharmaceutical Industry: In pharmaceutical manufacturing, PSA Nitrogen Generators play a crucial role in creating an inert atmosphere during the production and packaging of drugs and medicines. Nitrogen gas helps prevent degradation, oxidation, and moisture exposure, ensuring the quality and stability of pharmaceutical products.

Electronics Industry: PSA Nitrogen Generators are employed in the electronics industry for various applications, such as soldering, wave soldering, and reflow soldering. Nitrogen gas is used to minimize oxidation and improve the quality of solder joints, reducing defects and enhancing the reliability of electronic components.

Chemical Industry: Nitrogen gas generated by PSA Nitrogen Generators finds applications in the chemical industry for processes like blanketing and purging. Nitrogen is utilized to displace air or other gases in storage tanks, pipelines, and reactors, eliminating the risk of explosions, oxidation, and contamination.

Oil and Gas Industry: PSA Nitrogen Generators are utilized in the oil and gas industry for pipeline purging, well stimulation, and enhanced oil recovery (EOR) operations. Nitrogen gas is injected to displace hydrocarbons, improving safety, reducing fire hazards, and enhancing production efficiency.

Automotive Industry: In the automotive industry, PSA Nitrogen Generators are used for tire inflation. Nitrogen-filled tires offer improved pressure retention, better fuel efficiency, and enhanced safety compared to regular air-filled tires.

Metal Processing and Heat Treatment: PSA Nitrogen Generators provide nitrogen gas for annealing, brazing, and heat treatment processes in industries like steel, automotive, aerospace, and more. Nitrogen gas creates an oxygen-free environment, preventing oxidation and improving the strength and durability of metal components.

These are just a few examples of the diverse applications of PSA Nitrogen Generators. Their flexibility, efficiency, and cost-effectiveness make them indispensable in industries requiring a reliable and on-demand supply of high-purity nitrogen gas.






Box PSA Nitrogen Generator

Nitrogen capacity : 1 ~100Nm3/h
Nitrogen purity : 95%-99.999%
Nitrogen pressure : 0.5-0.8Mpa(boost for high pressure) Nitrogen dew point : ≤-40℃(Atmosphere pressure)
Control power supply : 0.2kw 220v 50Hz
