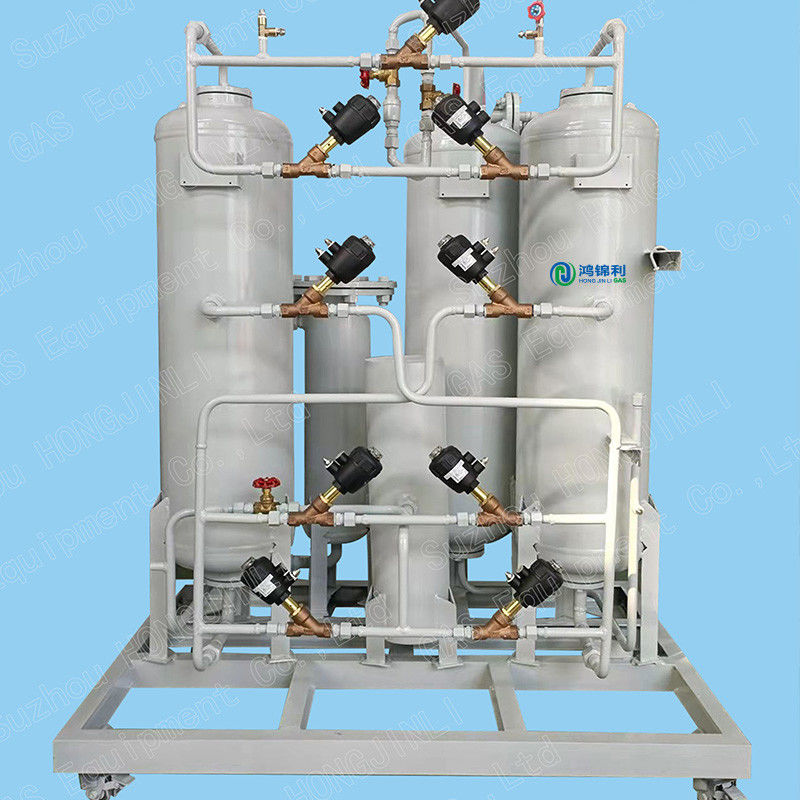

Hydrogen Psa Unit H2 Psa Pressure Swing Adsorption Hydrogen

PSA Nitrogen Generator

Description

A complete nitrogen generation system typically includes an air compressor, dryer (either an adsorption dryer or a refrigerated dryer), filters, a gas storage tank, and a nitrogen generator. Here's a description of each component:

Air Compressor: The air compressor is responsible for compressing ambient air and delivering it to the next stage of the system. It increases the air pressure and ensures a continuous supply of compressed air.

Dryer: The dryer removes moisture from the compressed air to prevent corrosion and ensure the efficiency of downstream equipment. There are two common types of dryers used in nitrogen generation systems:

Adsorption Dryer: This dryer uses an adsorbent material (such as activated alumina or molecular sieves) to adsorb moisture from the compressed air. It delivers dry air with low dew points.

Refrigerated Dryer: This dryer cools down the compressed air, causing the moisture to condense and separate from the air. The condensed moisture is then removed, resulting in dry air.

Filters: Filters are used to remove contaminants, such as oil, dust, and particulate matter, from the compressed air. They ensure the air supplied to the nitrogen generator is clean and free from impurities that could affect its performance.

Gas Storage Tank: The gas storage tank, often referred to as a receiver or buffer tank, is used to store the compressed air before it enters the nitrogen generator. It provides a reserve of compressed air and helps stabilize the system's pressure fluctuations.

Nitrogen Generator: The nitrogen generator is the core component of the system that produces nitrogen gas. The most common type of nitrogen generator is a Pressure Swing Adsorption (PSA) generator. It utilizes adsorbent materials, such as carbon molecular sieve (CMS) or zeolite molecular sieve, to separate nitrogen from the compressed air through the process of cyclic pressure swing adsorption. The nitrogen generator delivers high-purity nitrogen gas based on the specific requirements of the application.

The combination of the air compressor, dryer, filters, gas storage tank, and nitrogen generator forms a complete nitrogen generation system. This system ensures a reliable and continuous supply of nitrogen gas with the desired purity levels for various industrial applications.

PSA Nitrogen Generator Technical features :

PSA nitrogen generator features:

Adsorption technology: Uses adsorbent material to separate nitrogen gas.
Pressure Swing Adsorption: Cyclically changes pressure for separation.
High purity nitrogen: Produces nitrogen with purity from 95% to 99.999%.
On-demand production: Generates nitrogen as needed, no storage required.
Cost-effective: Reduces operational expenses compared to other methods.
Compact and space-saving: Occupies minimal space, easy integration.
Easy installation and operation: User-friendly controls and interfaces.
Energy efficient: Optimizes energy consumption.
Wide range of applications: Used in food, electronics, pharmaceuticals, and more.
